Standard Digital Airplane/Car Servo, S-U305, No S.Bus - Futaba

About this part

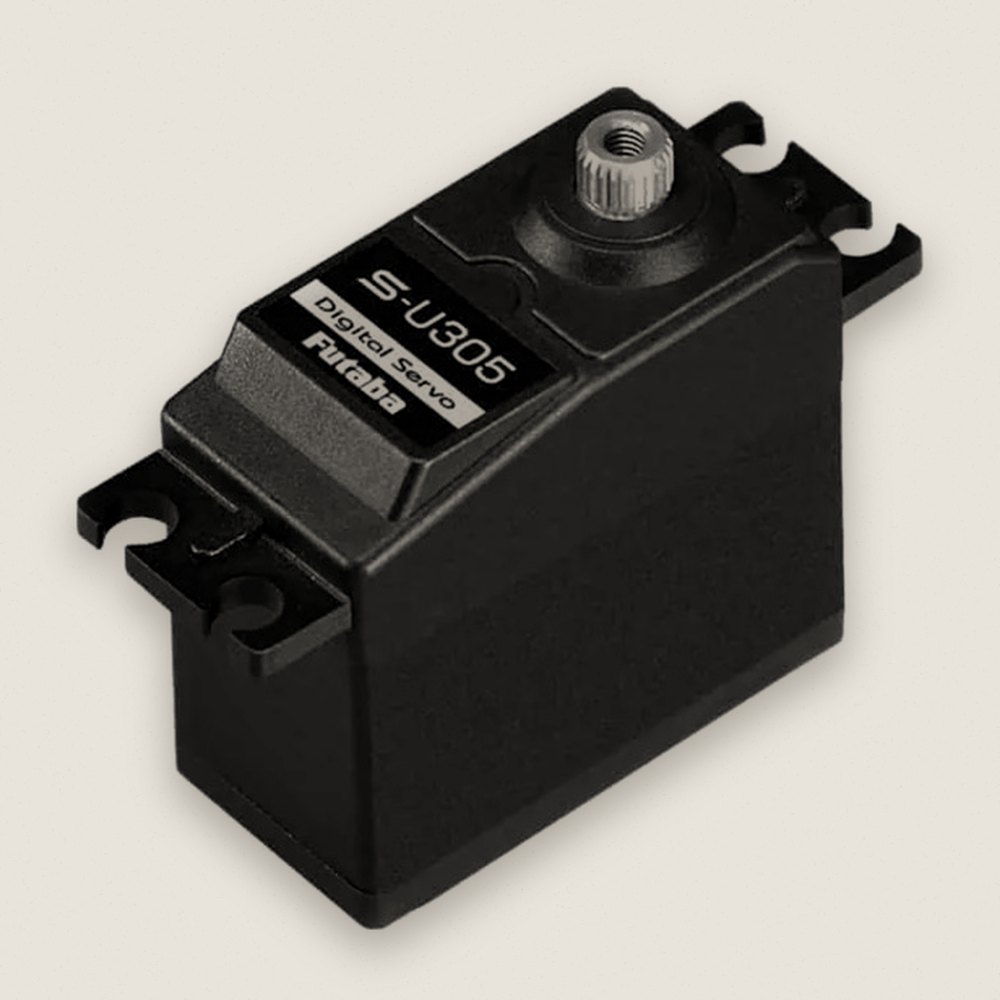

Futaba S-U305 standard digital airplane and car servo. No S.BUS on this one.

Specifications

• Speed 0.18 sec/60 at 6.0V, 0.23 sec/60 at 4.8V
• Torque 8.9 kgf/cm (123.6 ozf/in) at 6.0V, 7.1 kgf/cm (98.6 ozf/in) at 4.8V
• Size 40 x 20 x 38.1 mm (1.57 x 0.79 x 1.50 in), weight 46.5g (1.64 oz)
• WARNINGS:
• Do not use with a dry battery
• No S.BUS
• Do not leave the servo stalled. Stall can burn the circuit board.
