Telemetry Tfhss Radio, 3pv R304sb with R304sb Receiver - Futaba

About this part

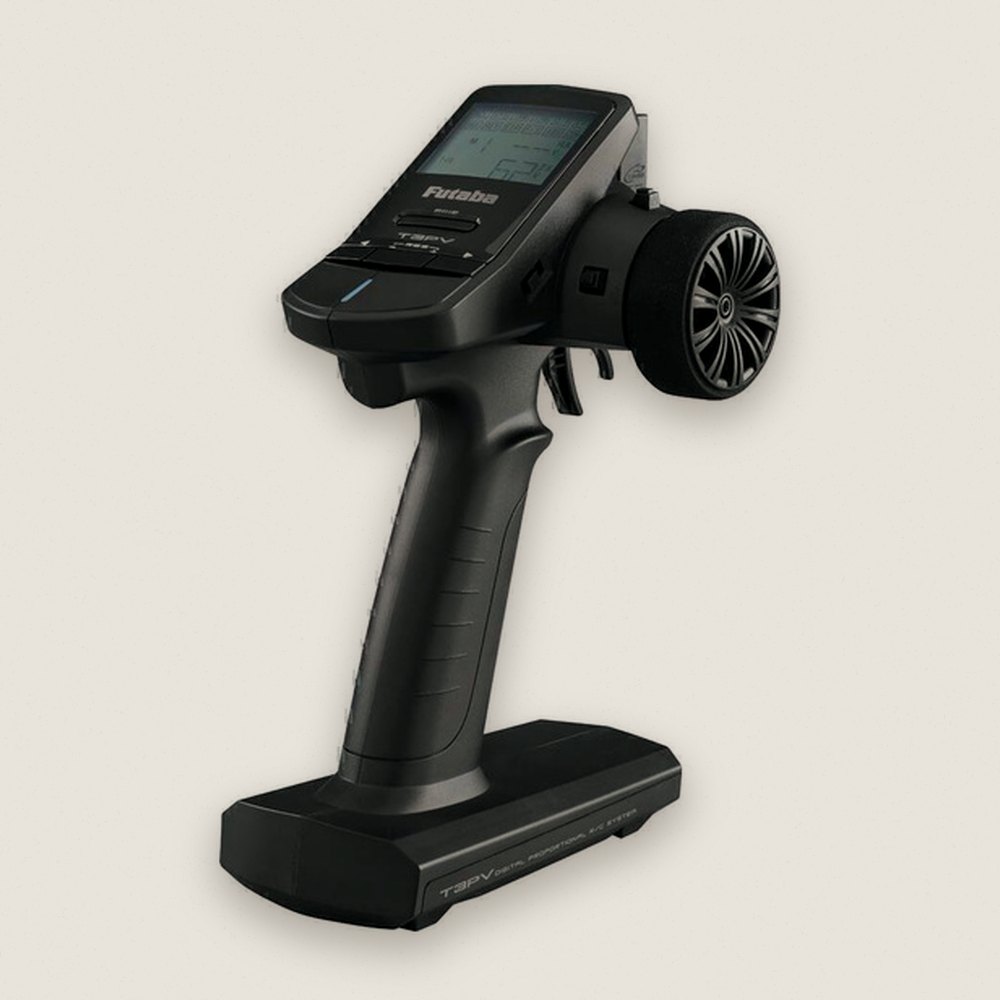

Futaba 3PV telemetry radio, bundled with the 4-channel R304SB T-FHSS telemetry receiver. Big, easy-to-read screen, four-wheel steering and brake mixing, model data copy and ABS function. Fits 3Racing Sakura and Align T-Rex 100, 250, 450, 500 and 550.

Features

• FHSS, S-FHSS and T-FHSS protocols
• Four-wheel steering, brake mixing and ABS
• Model data copy, link mode, DT3 selection, SW1
• Throttle fail safe, steering and throttle trim, sub trim, channel 4 trim
• Dual rate, end point and exponential adjustment for steering and throttle
• Channel 3 and 4 end point adjustment, servo reversing
• Auto power off after ten minutes

You will receive

• 3PV 3-channel transmitter and R304SB T-FHSS telemetry receiver

Requirements

• Transmitter: four AA cells, or Futaba HT5F1800B 6V NiMH pack (FUTM1482), or Hobbico LiFe 6.6V 1900mAh pack (HCAM6521)

Specifications

• R304SB receiver, part FUTL7680
• Receiver power: 4.8-7.4V battery, dry cells cannot be used
• 2.4GHz, T-FHSS auto detection with SBUS2 port
• Size 1.38 x 0.91 x 0.33 in (35.1 x 23.2 x 8.5mm), weight 0.23 oz (6.6g)
