Rear Knuckle, Black Aluminum for B5 B5m T5m - Hot Racing

About this part

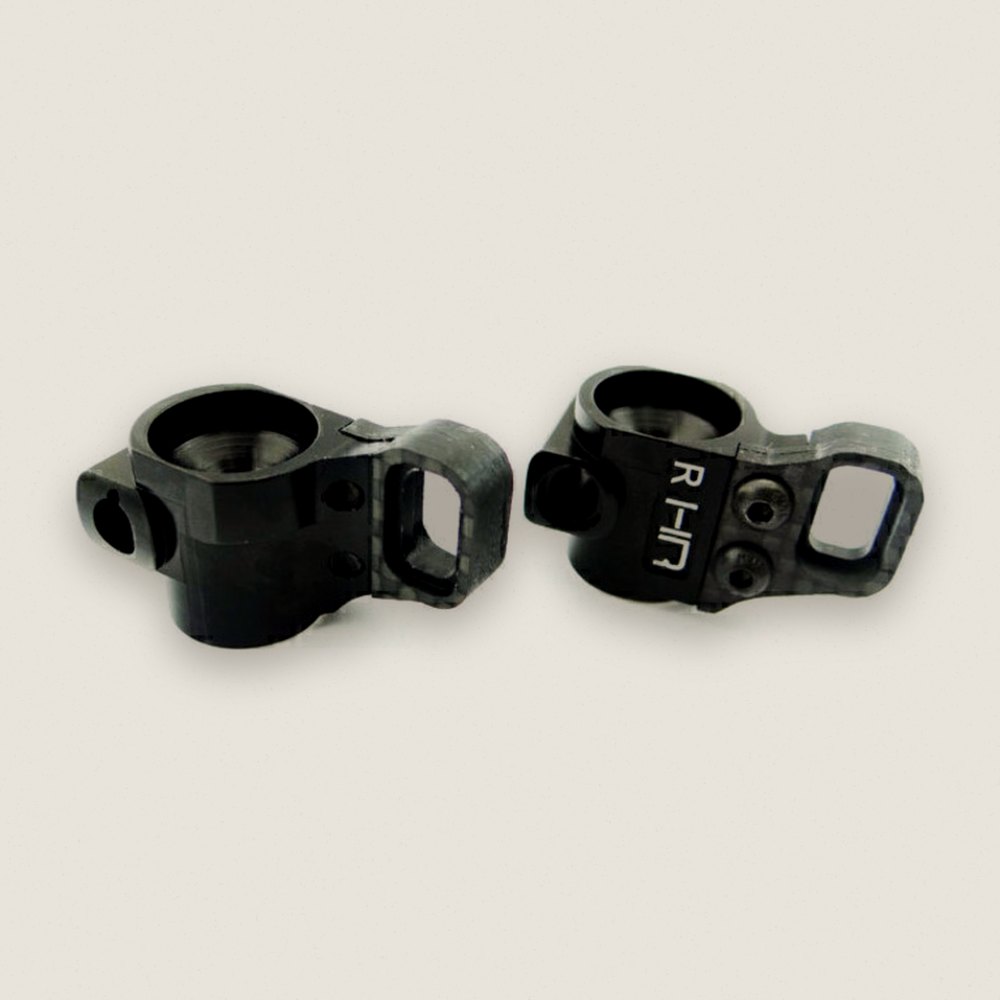

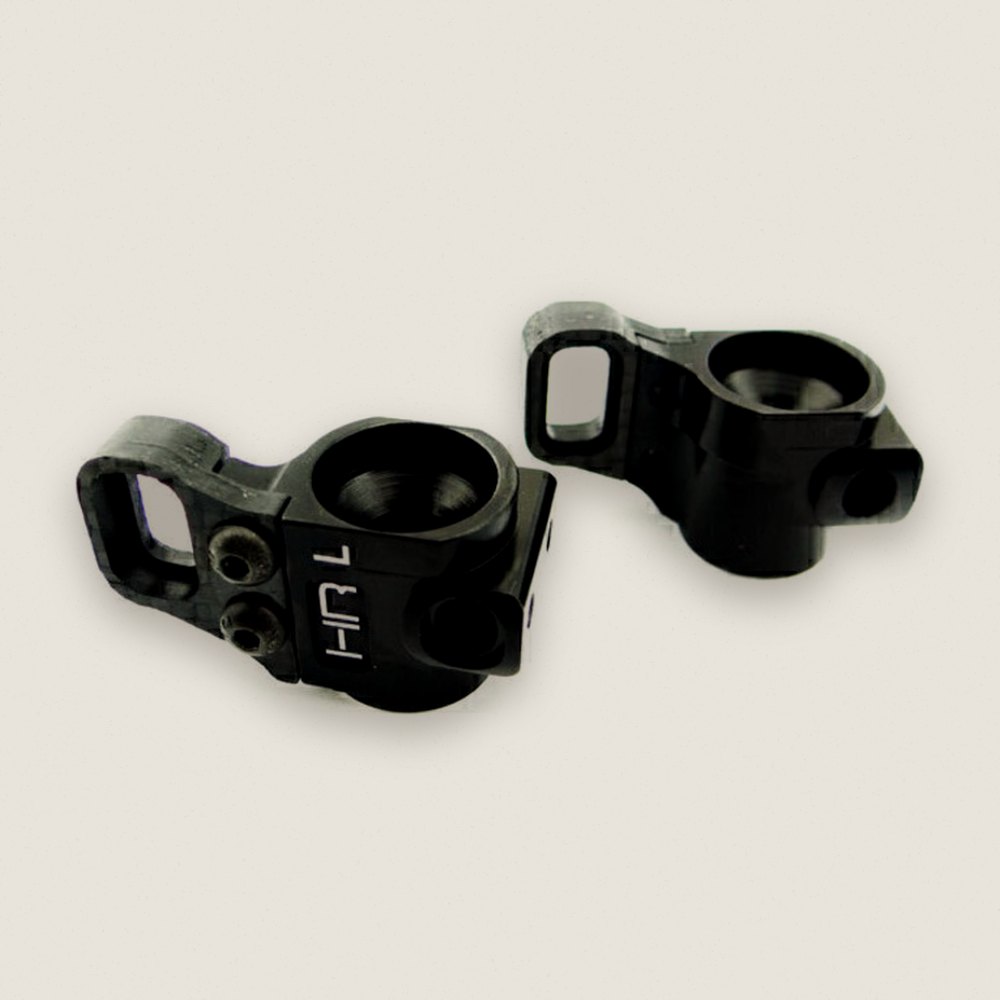

Hot Racing's aluminum rear hubs pair CNC-machined aluminum with carbon fiber link mounts. They're anodized black, with clearly marked R and L labels. They replace the factory plastic hubs on Team Associated 5-series 1/10 scale trucks, including the RC10B5, RC10B5M, RC10B5M Factory Lite, RC10SC5M and RC10T5M. Each hub has two M3 threaded holes on the bottom for setscrews that keep the toe insert from moving. FITS: Associated RC-10 B5 and B5M Associated RC-10 T5m Associated RC-10 SC5M Short Course WHAT YOU GET: Left and right aluminum rear hubs with carbon fiber link mounts

Requirements

• Removable blue threadlock on screws going into metal
• Four (4) M3x3mm or M3x4mm setscrews to lock the toe insert
• Reuses stock parts: 25616 (10x15x4mm bearings), 91476 (6x13x5mm bearings), and rear hub inserts from 91414

Notes

• Replaces factory plastic Team Associated rear hubs 91414 or 91415. Replacement carbon fiber link mounts are Hot Racing RBFR22G01.

Fits
